Client Private
Dates Building Control Full Plans approval July 2016

Working drawings and specification for a ground floor extension and reconfiguration of the existing utility room/ kitchen.  The extension has full height Crittal windows, brick gauged arches and under floor heating.  Coordination with Party Wall Surveyors and Structural Engineers was required. Hitchcock Architects were also named Principle designer and provided CDM pre construction information.

Knatchbull Road, London

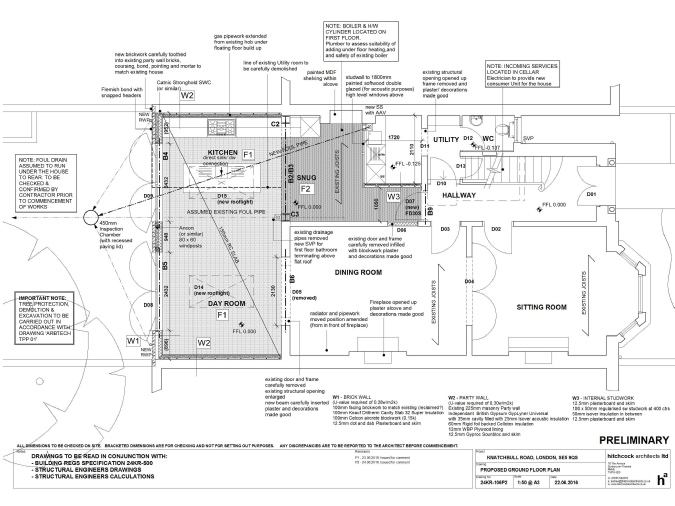

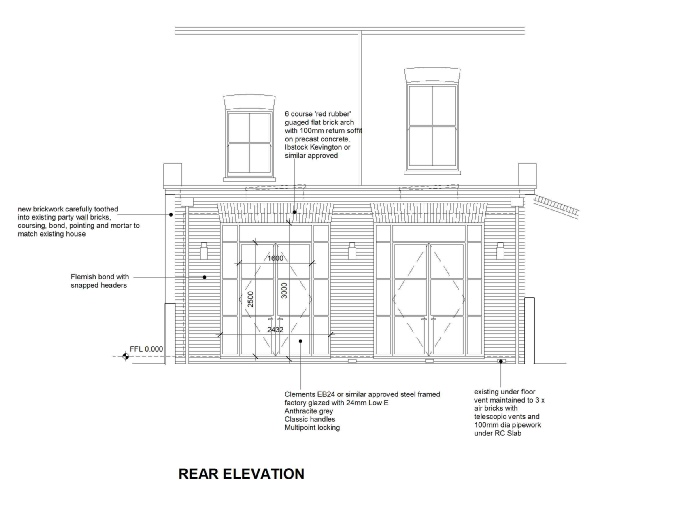

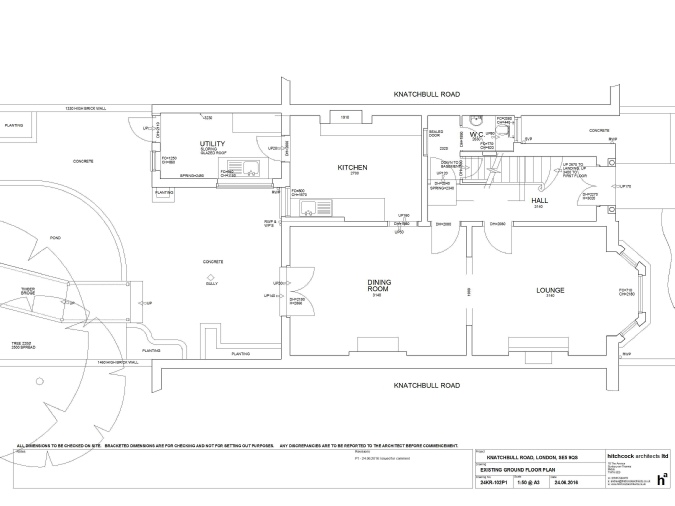

24KR - 102P1 Existing Ground Floor Plan.pdf 24KR - 106P2 Proposed Ground Floor Plan.pdf 24KR - 108P3 Proposed Section AA BB.pdf 24KR - 110P2 Proposed Rear Elevation.pdf
