hitchcock architects ltd
TOFN - 09 plot 02 proposed floor plans.pdf

Client  Hitchcock Architects Ltd
Dates  Planning approved March 2020, Archaeology conditions approved June 2020.

Planning application for the erection of 3no. dwellings and 1no. cartlodge (following demolition of existing dwelling and outbuildings). Conversion and extension of single storey outbuilding to form 1no. dwelling and alterations to vehicular access/driveway.

The redevelopment of this brownfield site in the centre of Norton will preserve and enhance the character of the listed building and streescene. After careful consideration  it was decided to retain the original single storey outbuilding. Although dilapidated it adds character to the street and we believe is worthy of retention/ rebuilding like for like. Keeping this will enclose and protect views of the listed building ‘The Dog’ pub.

The replacement dwelling remains orientated north/south to address the street frontage, and has been moved slightly further away from Westlynn to allow and access driveway to the plots beyond.  The scale of the new dwellings are comparable with existing/ other dwellings behind the site.

Given the village centre location and proximity to the listed building the dwellings have been carefully and sensitively designed. We are proposing an appropriate mix of traditional materials with horizontal weather boarding, painted render, with soft red brickwork plinths, clay pantiles/ plain tiles. Fenestration will be purpose made timber casements.


The Old Forge, Norton, Suffolk

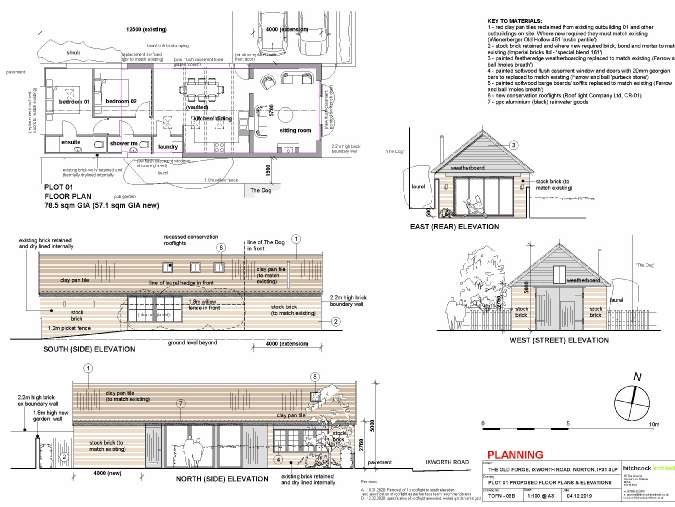

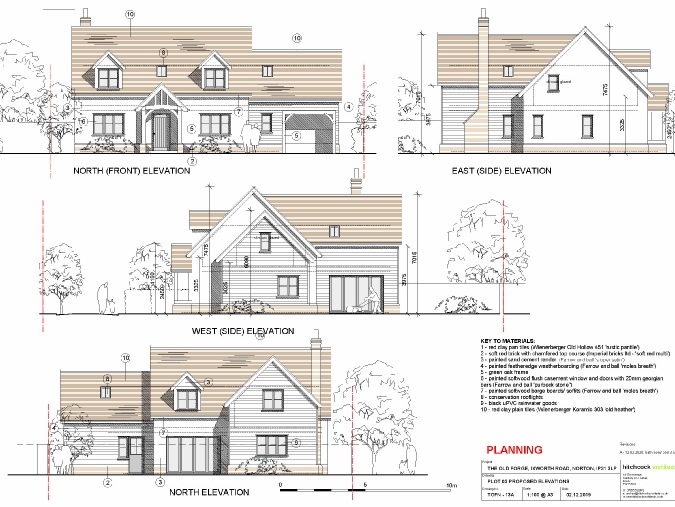

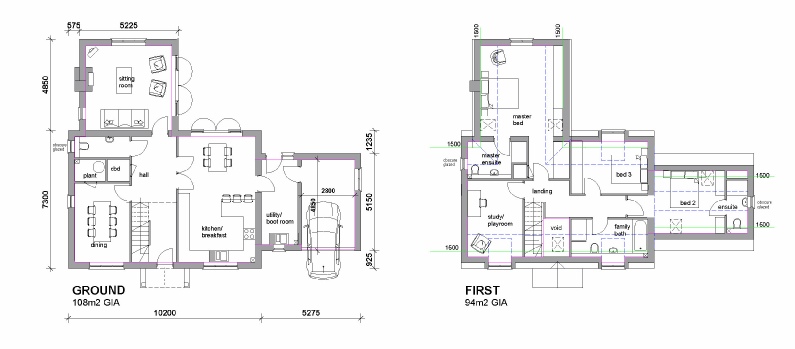

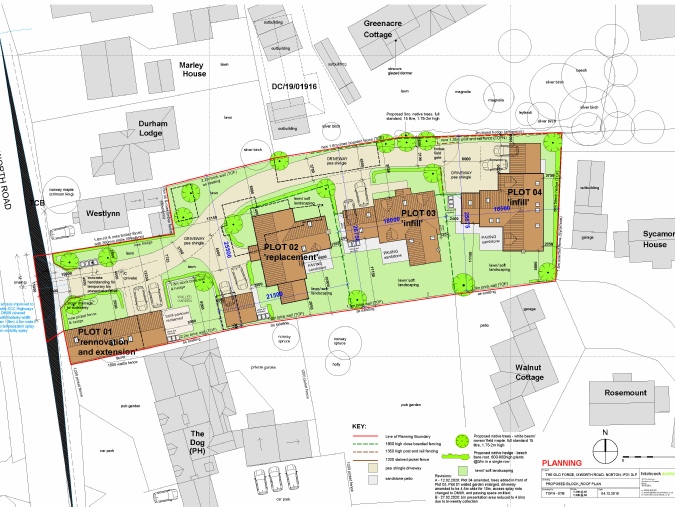

TOFN - 13A plot 03 proposed elevations.pdf TOFN - 15A plot 04 proposed elevations.pdf TOFN - 07B proposed block_roof plan.pdf TOFN - 10 plot 02 proposed elevations.pdf TOFN - 08B plot 01 proposed floor plans and elevations.pdf TOFN - 12A plot 03 proposed floor plans.pdf TOFN - 14A plot 04 proposed floor plans.pdf
